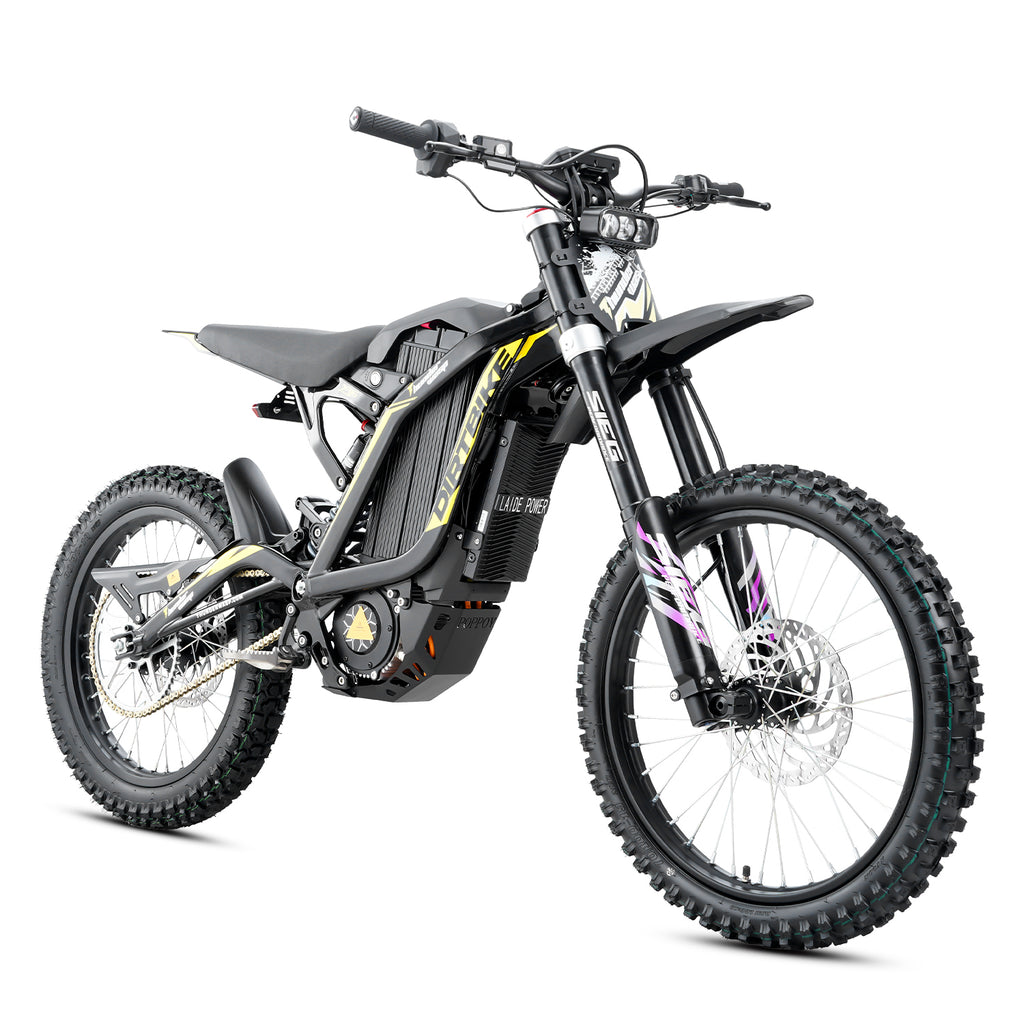

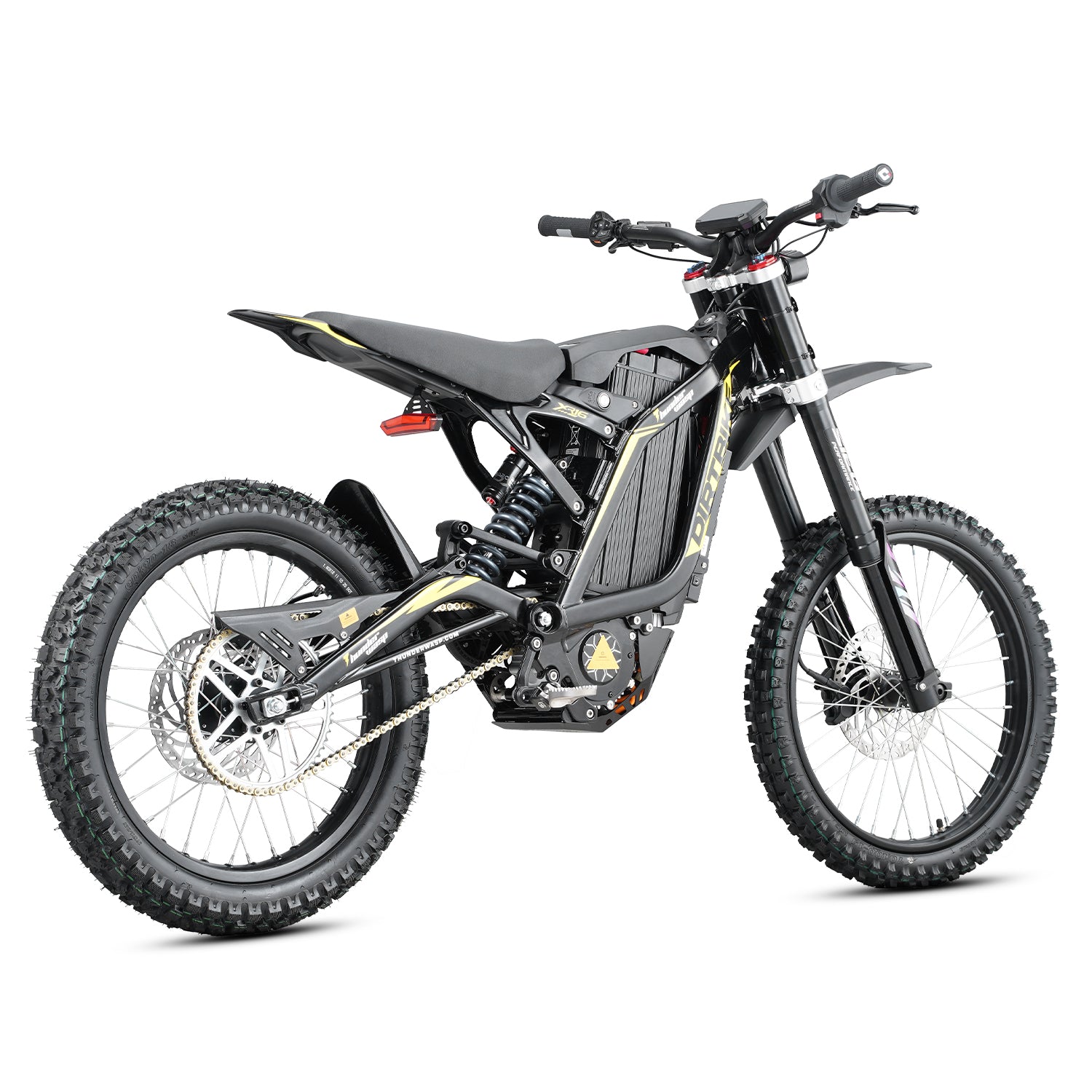

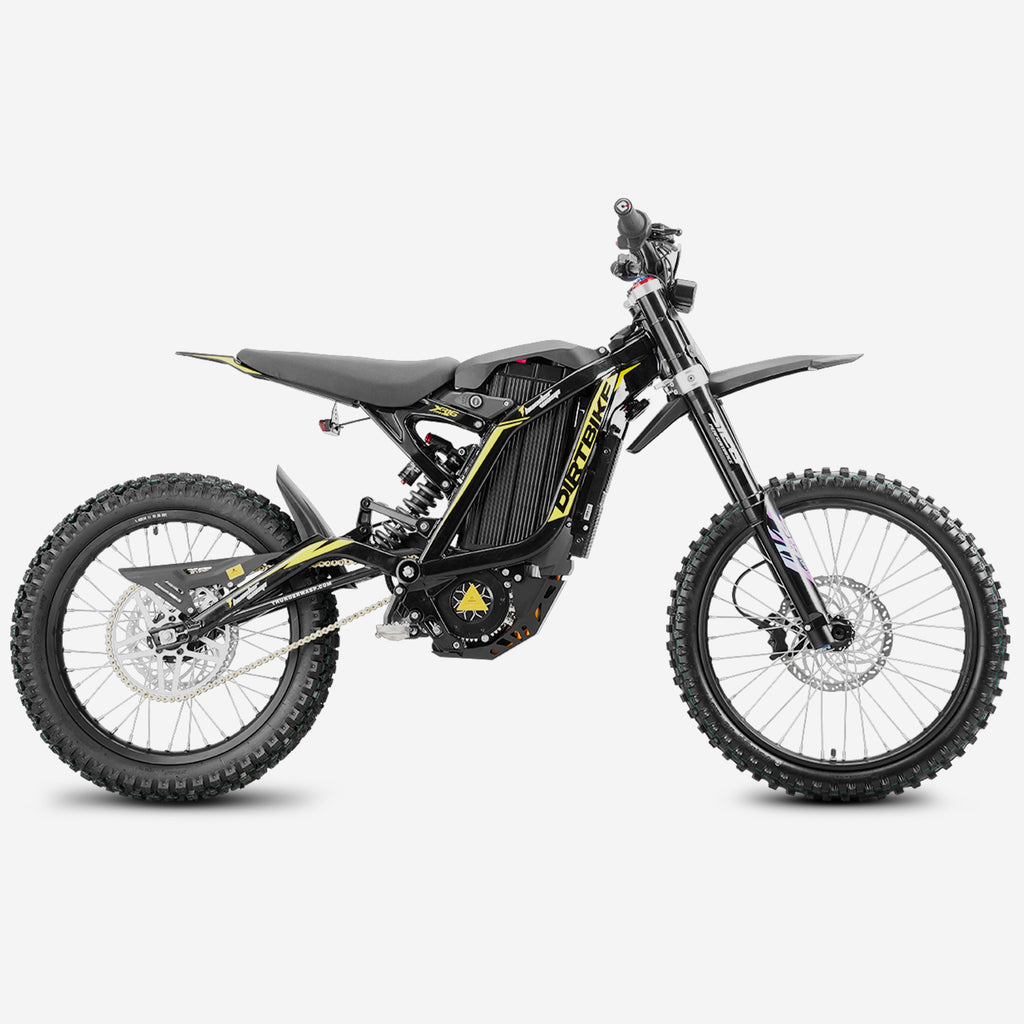

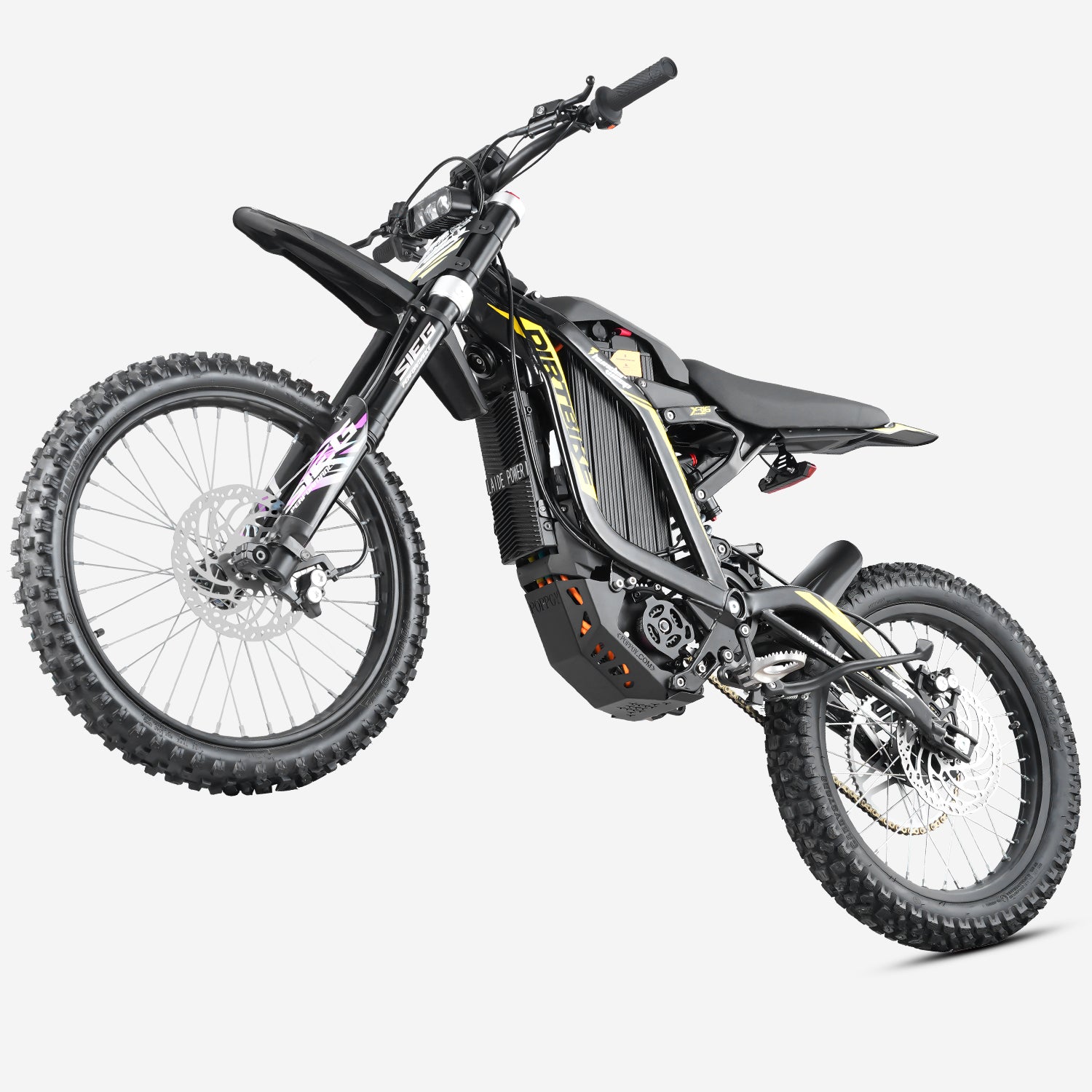

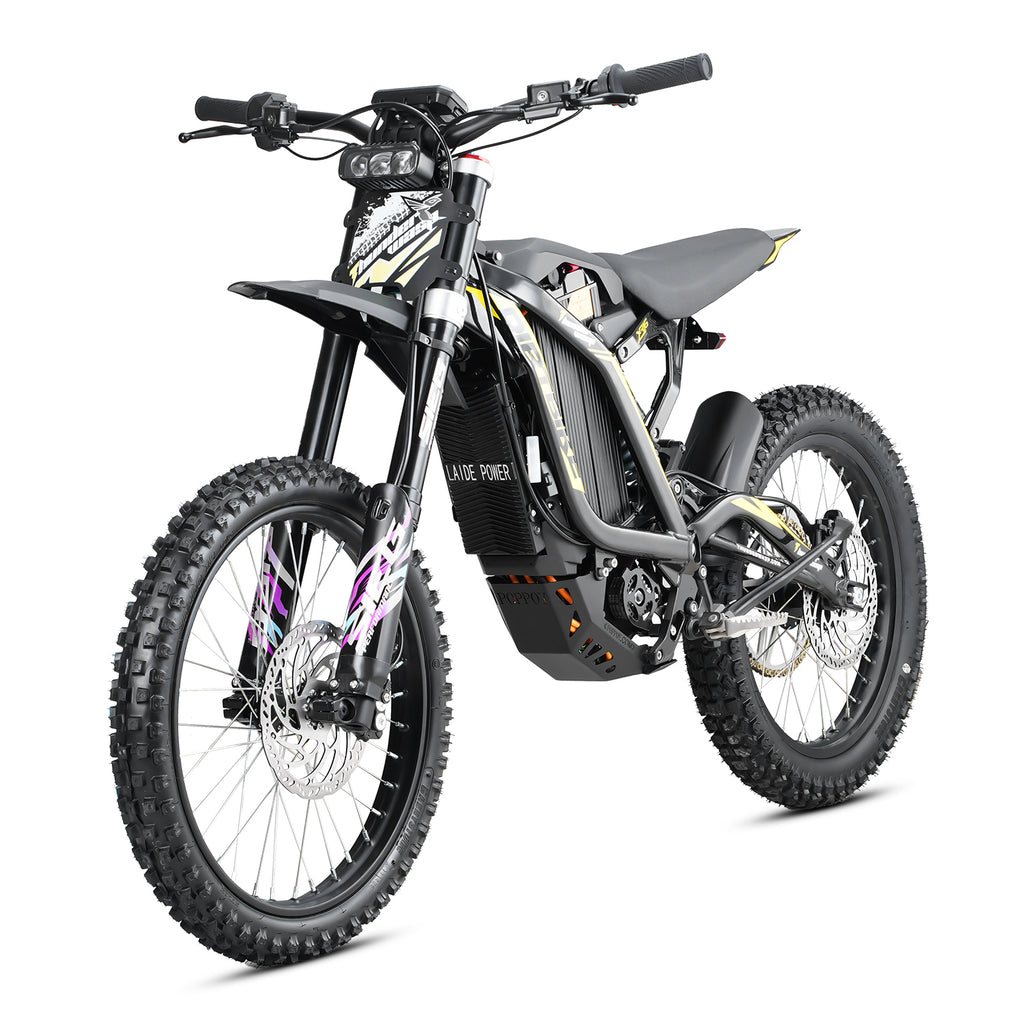

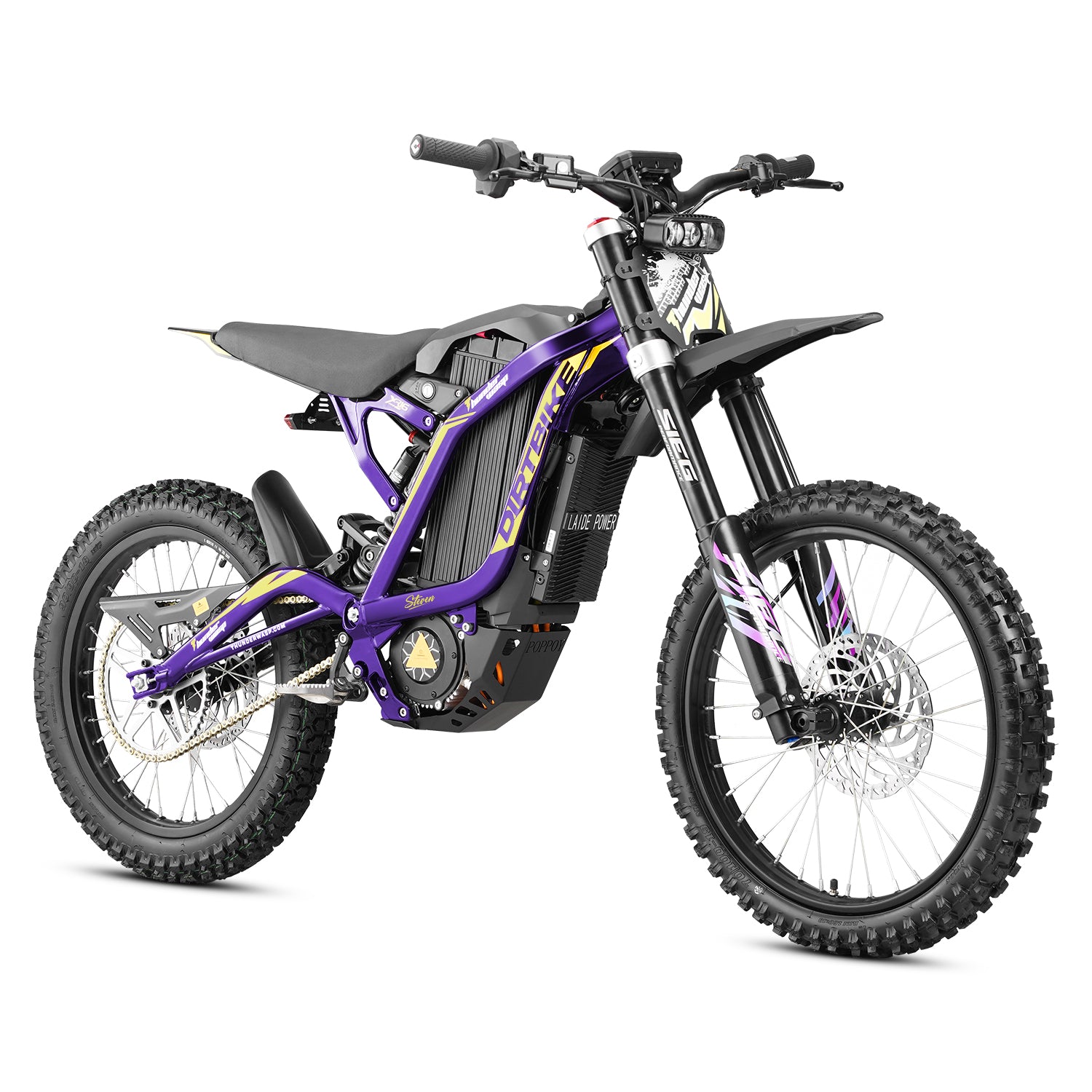

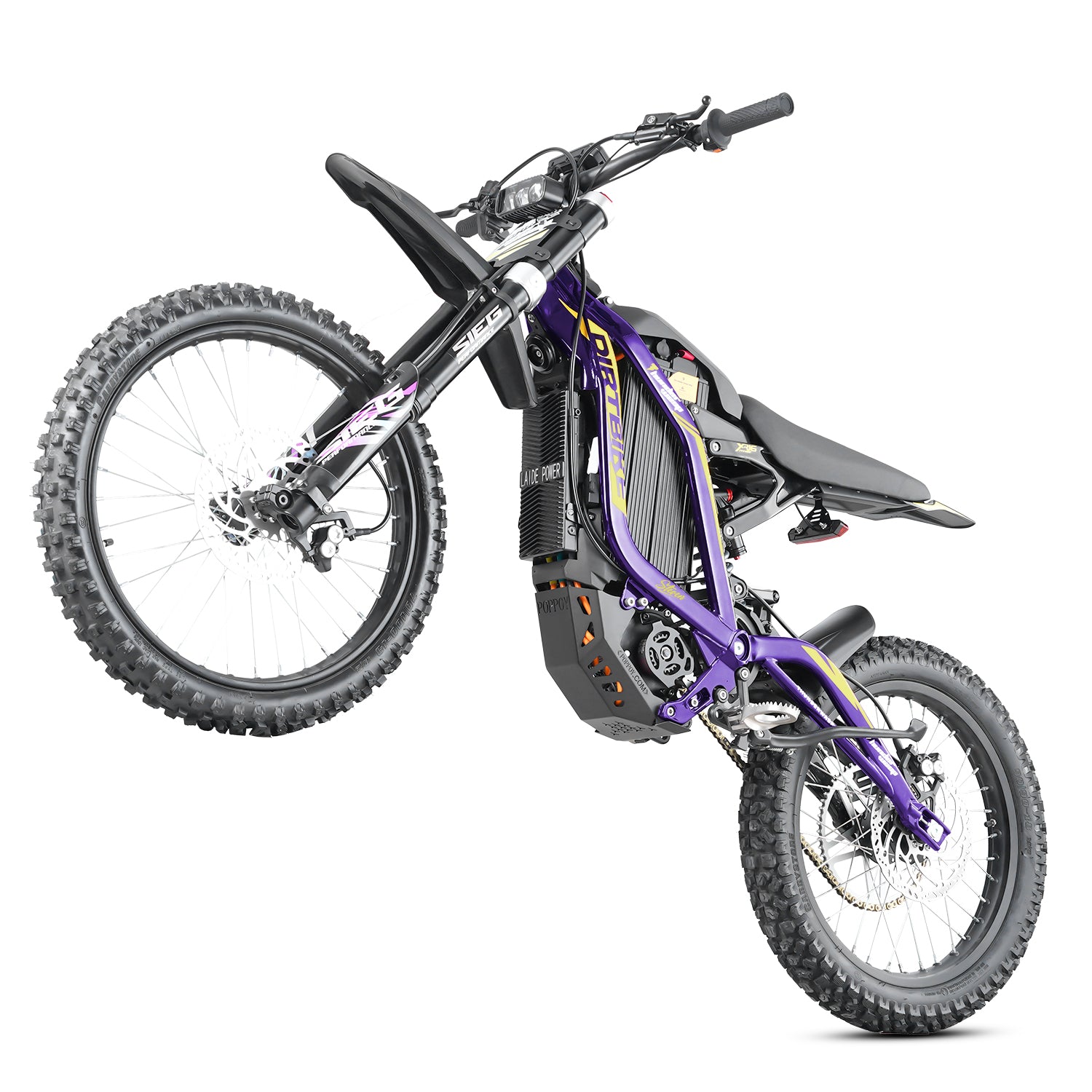

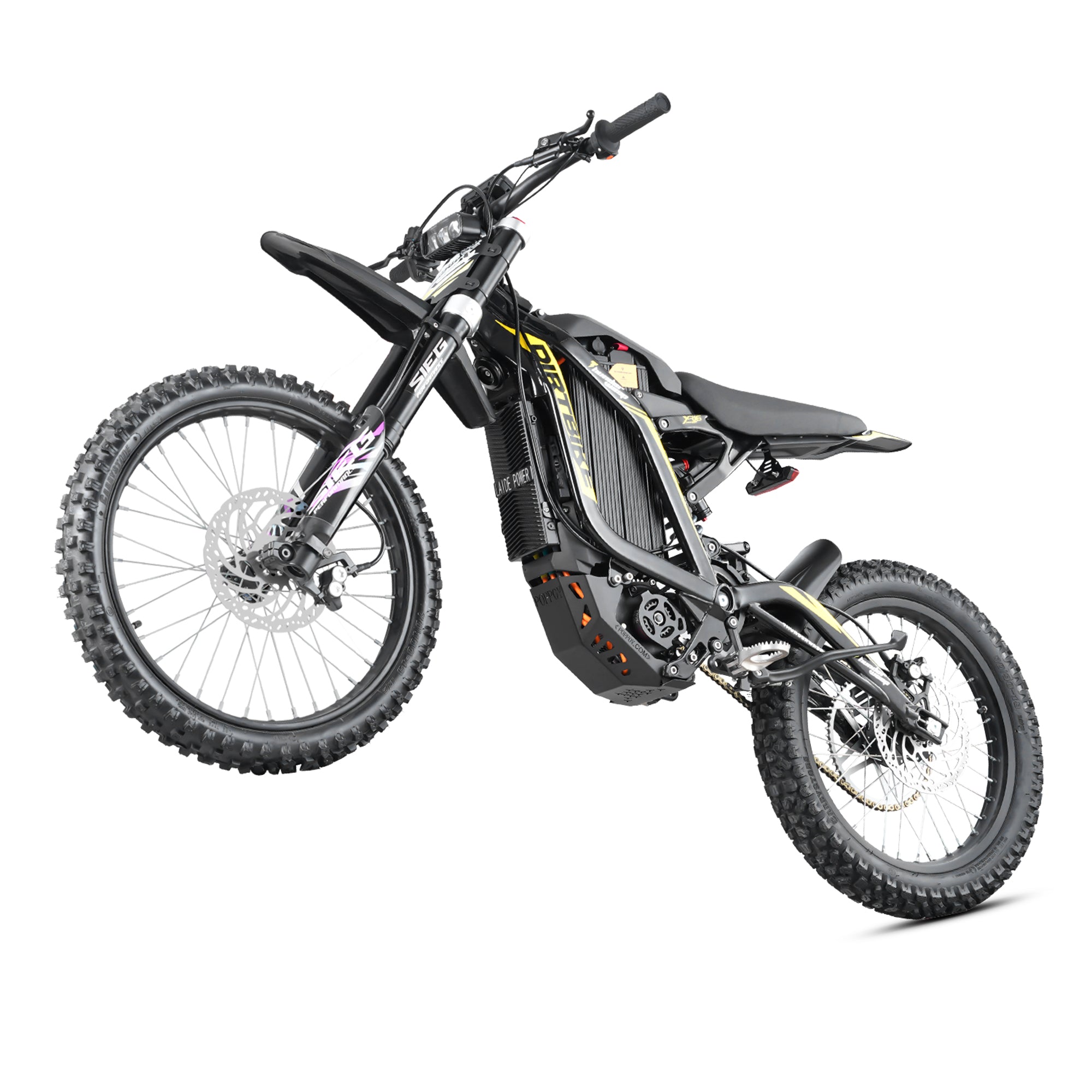

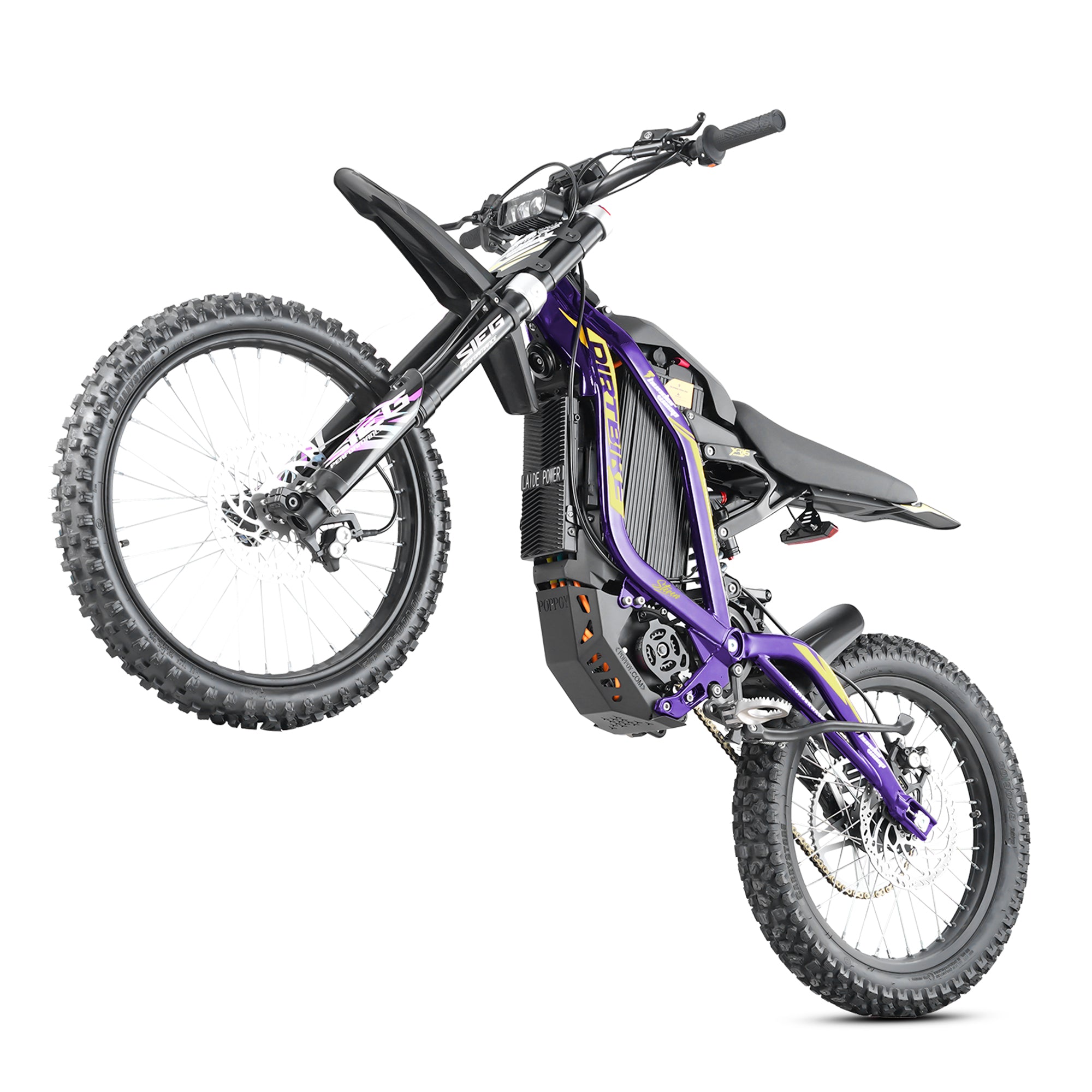

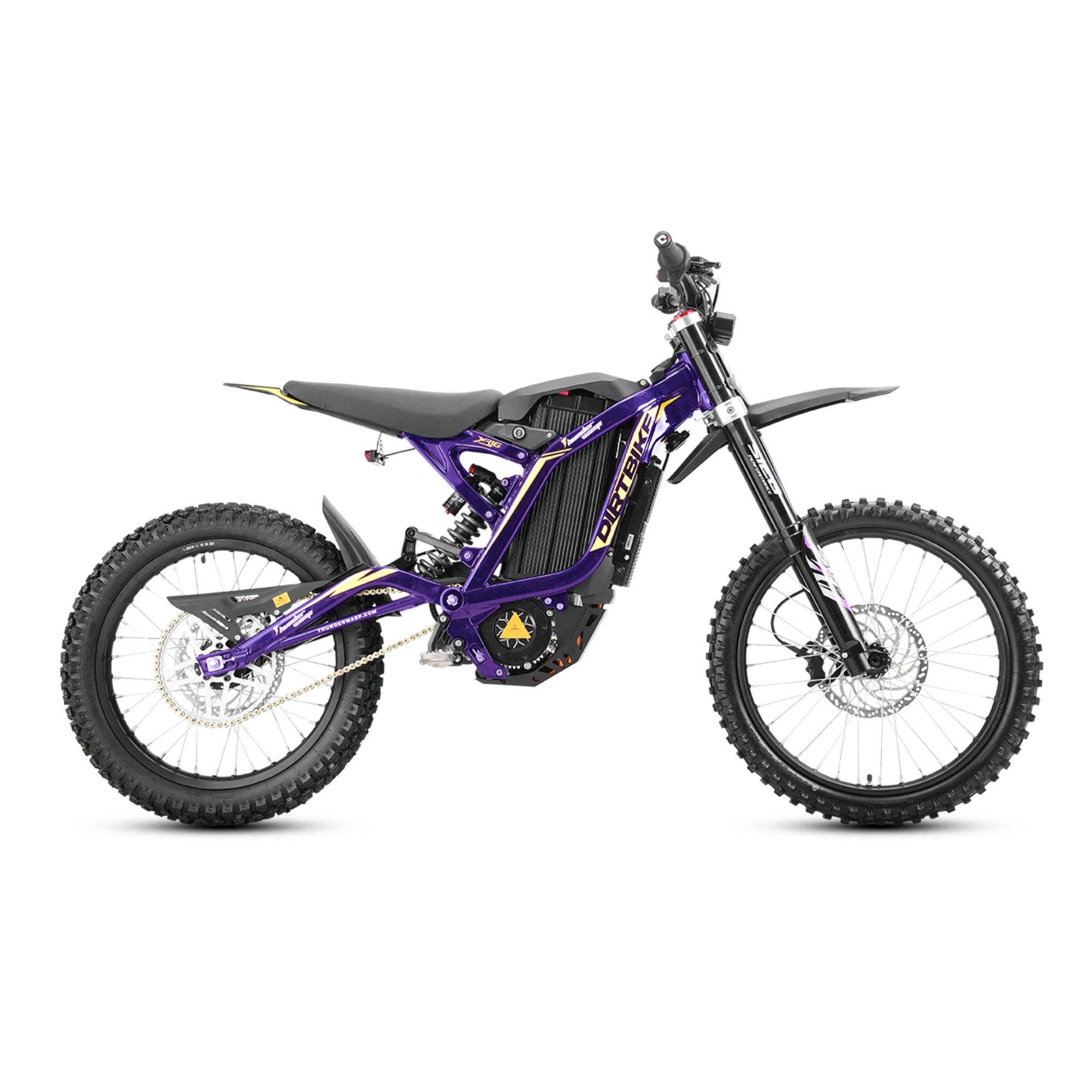

ThunderWasp XR16

High-Performance Off-Road Electric Dirt Bike

$4,699.00 Sale • Save $600.00

Description Description

16,000W Mid-Drive Power: High-torque performance built for aggressive acceleration, steep climbs, and demanding off-road trails.
62 Miles Extended Range: 2880Wh Samsung battery cells deliver long-lasting power with U.S. localized battery support for added confidence.
62 mph Real-World Tested Speed: Unleash incredible speed with smooth, controllable power delivery.
Race-Ready Suspension: RFloXa rear shock and SIEG front fork provide exceptional handling, impact control, and stability on any terrain.

Shipping Info Shipping Info

3 - 9 Days Delivery to Shipping Areas
DOES NOT Support Overnight Delivery

1-Year Warranty 1-Year Warranty

Our limited 1-YEAR warranty covers all ThunderWasp bikes. All components and parts are promised zero material, quality, and workmanship defective. We will provide replacement item(s) for free if there's such issue(s) to find during the warranty period.The Warranty Period begins (no need to register) upon your receipt of the ebike and shall end immediately upon the earlier of the end of the Warranty Period.

Owner's Manuals Owner's Manuals

User's manual

Body color Bright Black

Buy it with

Thunder Wasp Battery Pack - XR16

$1,699.00

16000W Peak

Mid-Drive Motor

62 Mph

Top Speed

2880Wh

Battery Capacity

62 Miles

Max Range

55 Degrees

Uphill Ability

RFloXa Rear Shock

Suspension

XR16 | UNLEASH THE BEAST

Real Riders. Real Reviews.

XR16 16kw automotive-grade alloy electric dirt bike Review

@Pat Outdoors

XR16 72V E-Moto Acceleration Review, 0-30MPH in 3.0 seconds with fully tunable controller

@Evan Cleary

ThunderWasp XR16 72V 16kW Electric Dirt Bike Tested at 62 MPH Top Speed

@Amped Up Rides

Review of offroad cruising on ThunderWasp XR16 72V responsive braking electric E-Moto in open dirt field

@Evan Cleary

Shot of XR16 top speed 62mph E-Moto

@Evan Cleary

Trusted by Riders

Adult enjoying offroad cruising on ThunderWasp XR16 responsive braking electric E-Moto in open dirt field

ThunderWasp XR16 automotive-grade alloy electric dirt bike ridden by adult rider on outdoor dirt offroad track

Dynamic jump stunt of XR16 electric dirt bike with pro-tuned adjustable suspension on offroad dirt track

High Performance Powertrain & Suspension

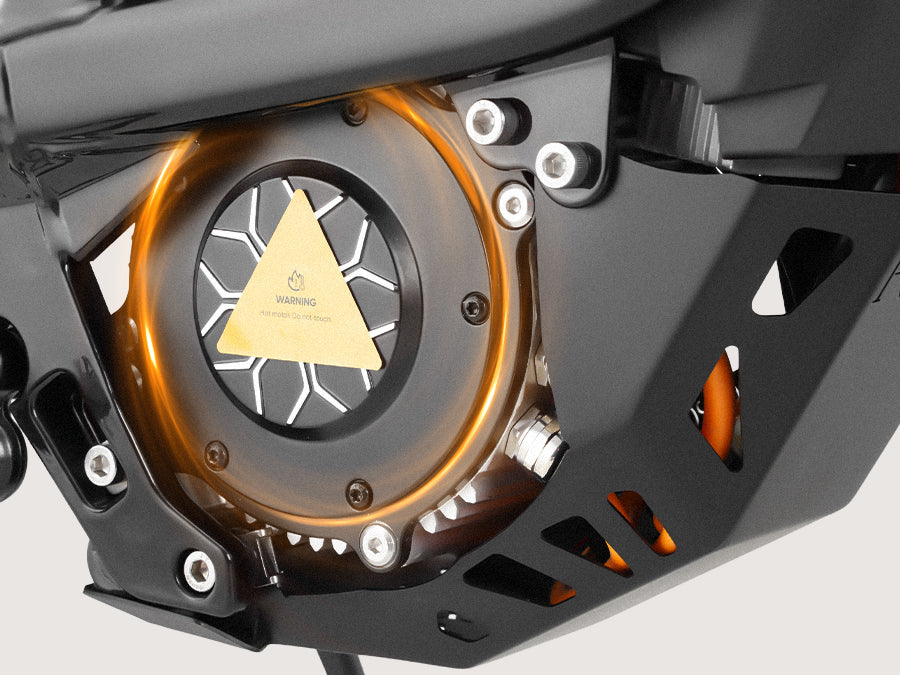

16000W Peak Power Mid-Drive Motor

The ThunderWasp XR 16’s 8.5kW permanent magnet motor is coupled with a compact constant mesh gear reduction to boost torque to the rear wheel. The resulting 460Nm / 339 lb-ft leads this off-road category to maximize acceleration.

Gradeability: 45° - 55°

High Performance Powertrain & Suspension

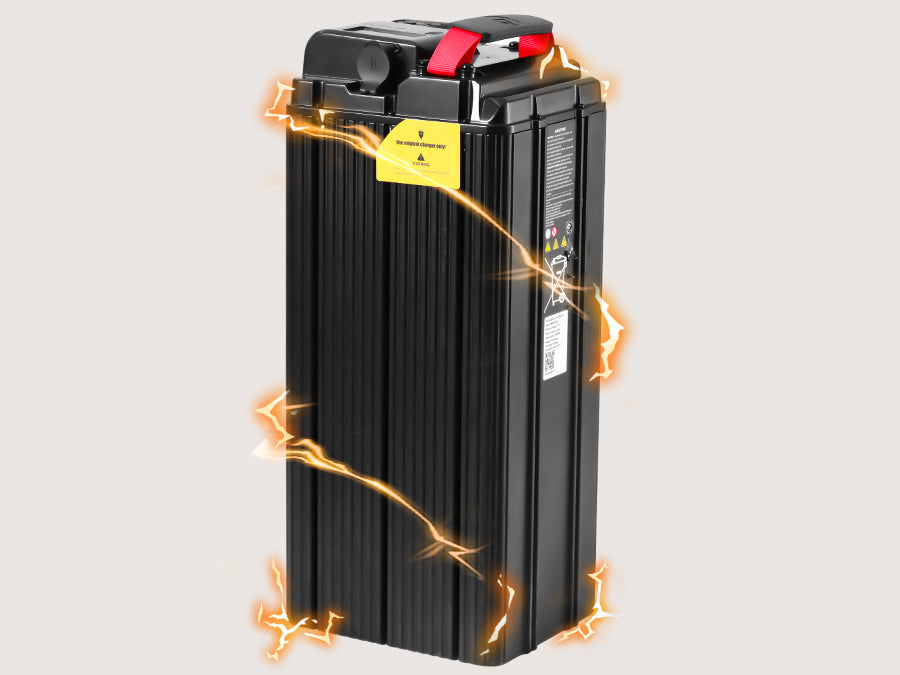

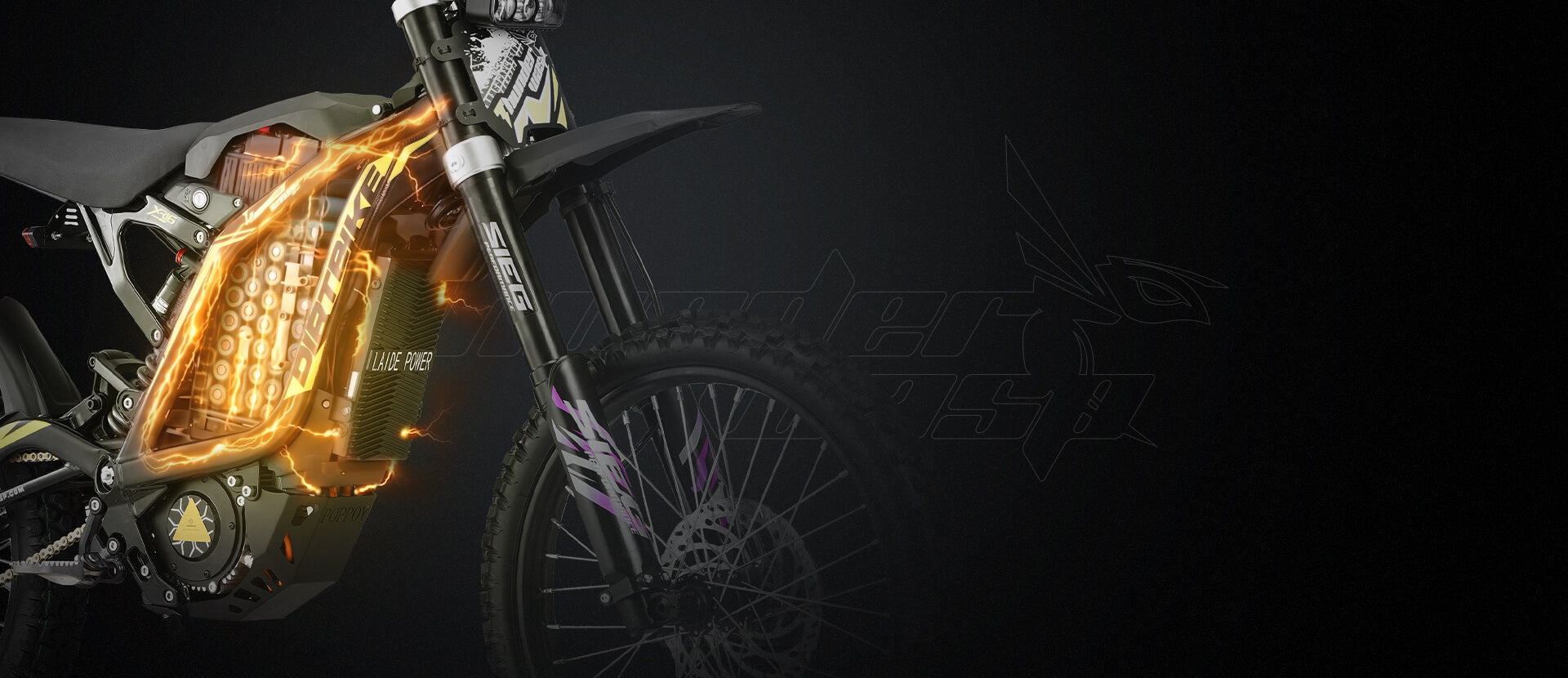

21700 72V40Ah High Performance Lithium Battery

72V40ah battery pack for XR 16, equipped with safe and efficient battery management module, making its output powerful and stable. The 2880Wh replaceable lithium-ion battery can be replaced in under 20 seconds to keep the ride going nonstop.

Charging Time：4 Hours (90%)

High Performance Powertrain & Suspension

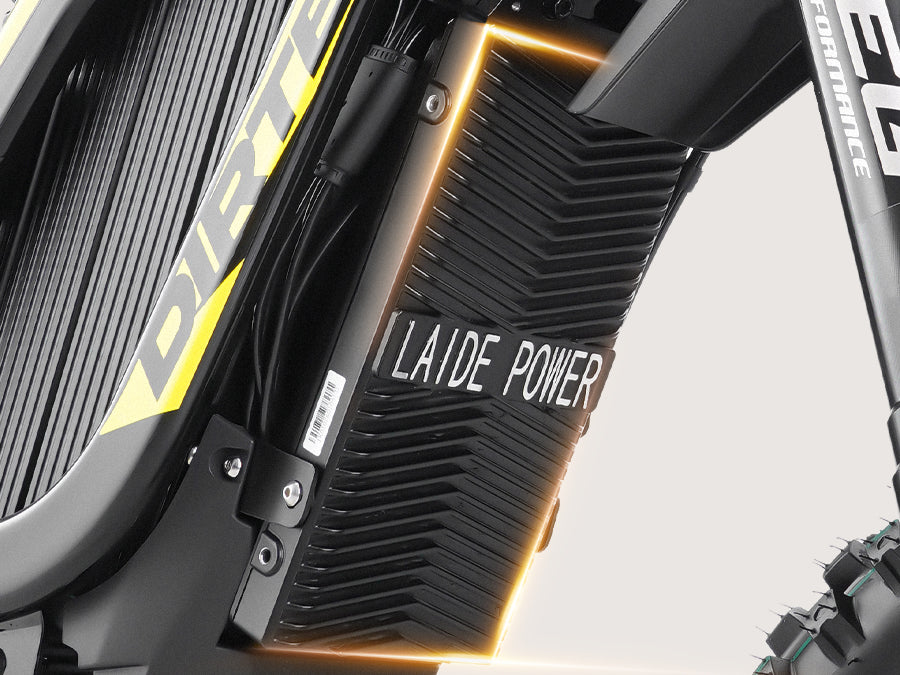

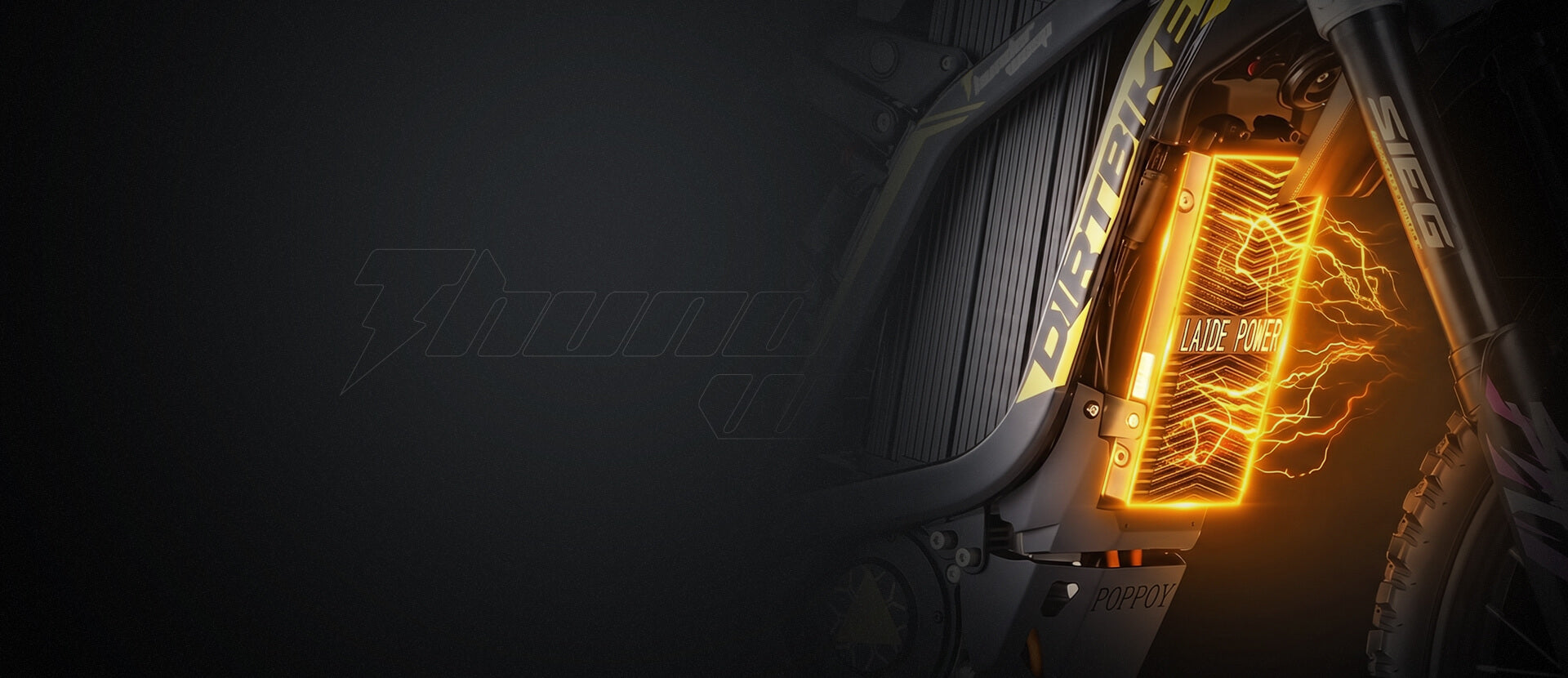

Independently Designed Foc Controller

ThunderWasp independently designed and developed, multi-curve compound algorithm program, real-time monitoring of throttle turning angle, speed, motor torque and current intensity, and will continuously analyze and learn your daily riding data to make it fit with your riding habits.

Peak Current: 200A High-Output

High Performance Powertrain & Suspension

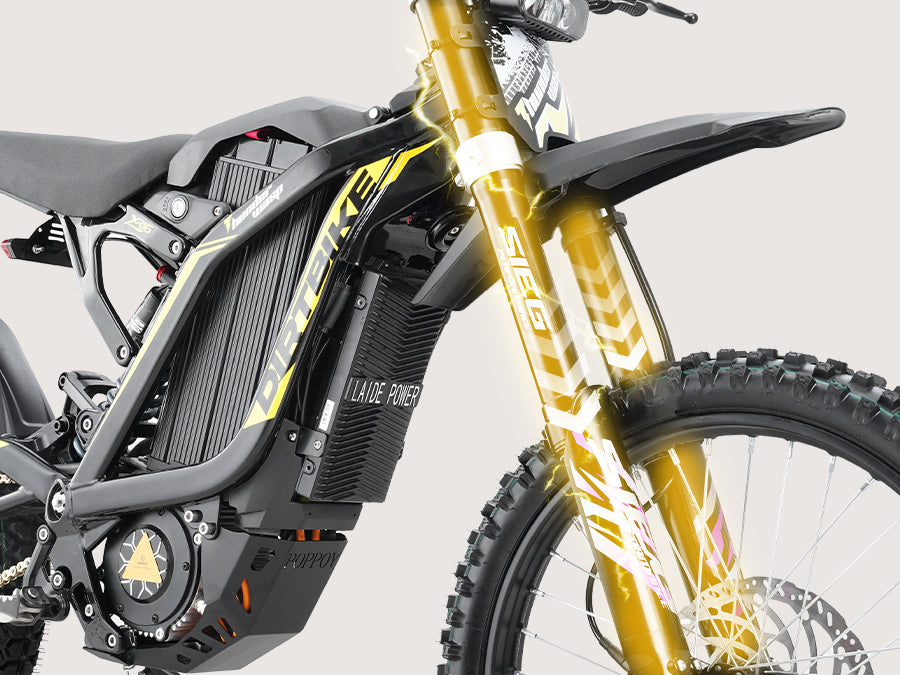

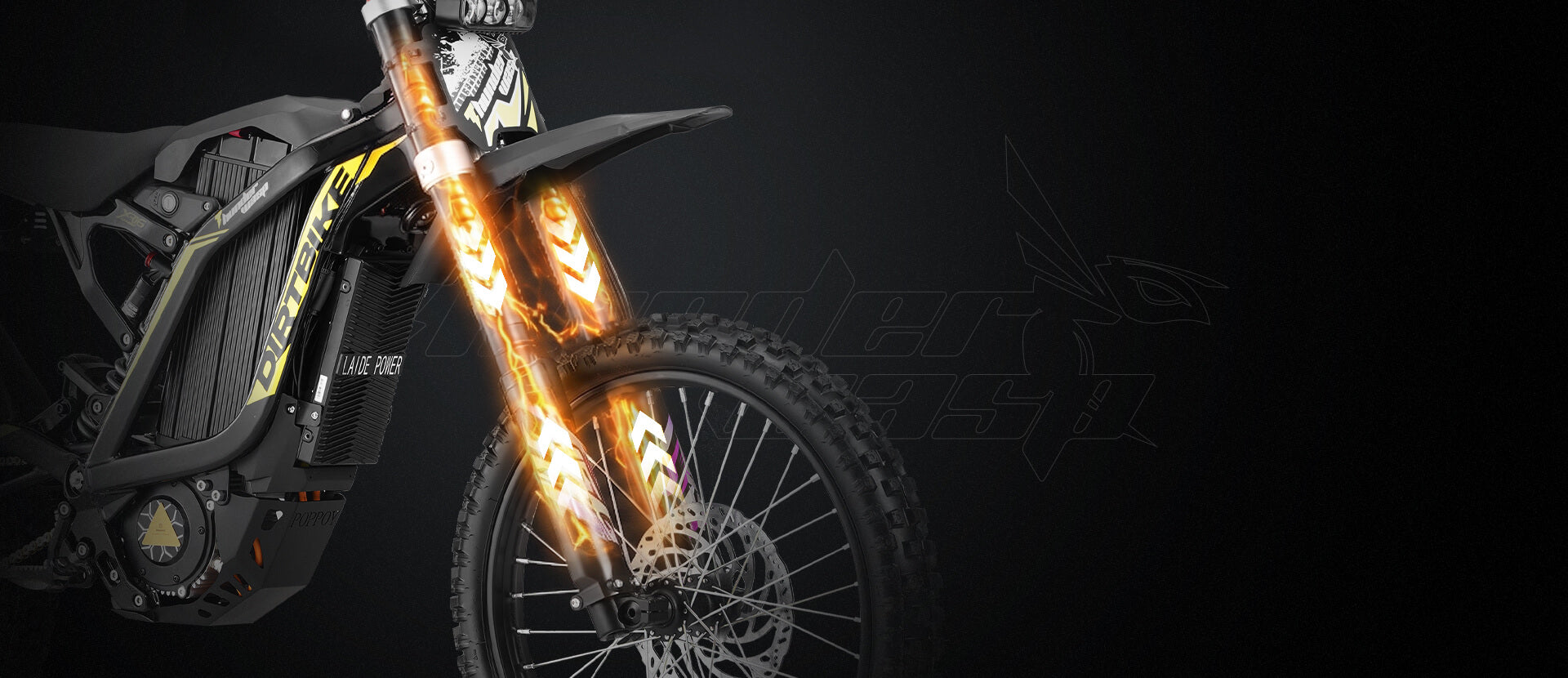

Dual-crown Front Fork

The XR 16 integrates air suspension with spring damping to deliver riders unparalleled comfort and control. Its adjustable spring damping feature further enhances performance by slowing the spring's movement, ensuring a refined and precise shock absorption experience.

Travel: 200 mm

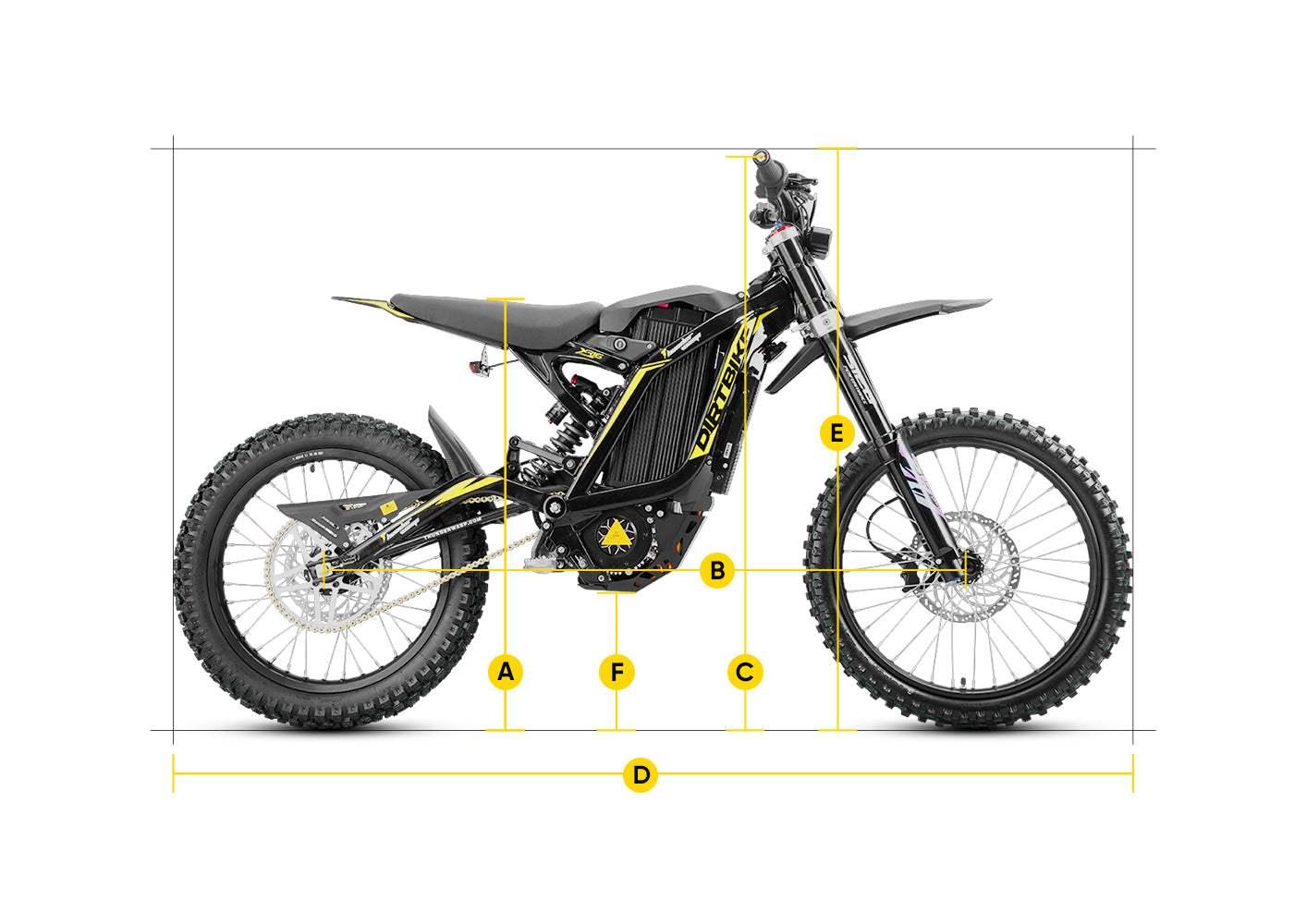

Size & Geometry

Recommended Rider Height: 5'5" - 6'3" or 165cm - 190cm

Ⓐ - Seat Height: 32.2" or 82cm
Ⓑ - Wheel Base: 49.6" or 126cm
Ⓒ - Handlebar Height: 41.1" or 104cm
Ⓓ - Total Length: 74.0" or 188cm
Ⓔ - Total Height: 42.1" or 107cm
Ⓕ - Ground Clearance: 10.2" or 26cm

XR 16: Precision Craftsmanship In Every Detail

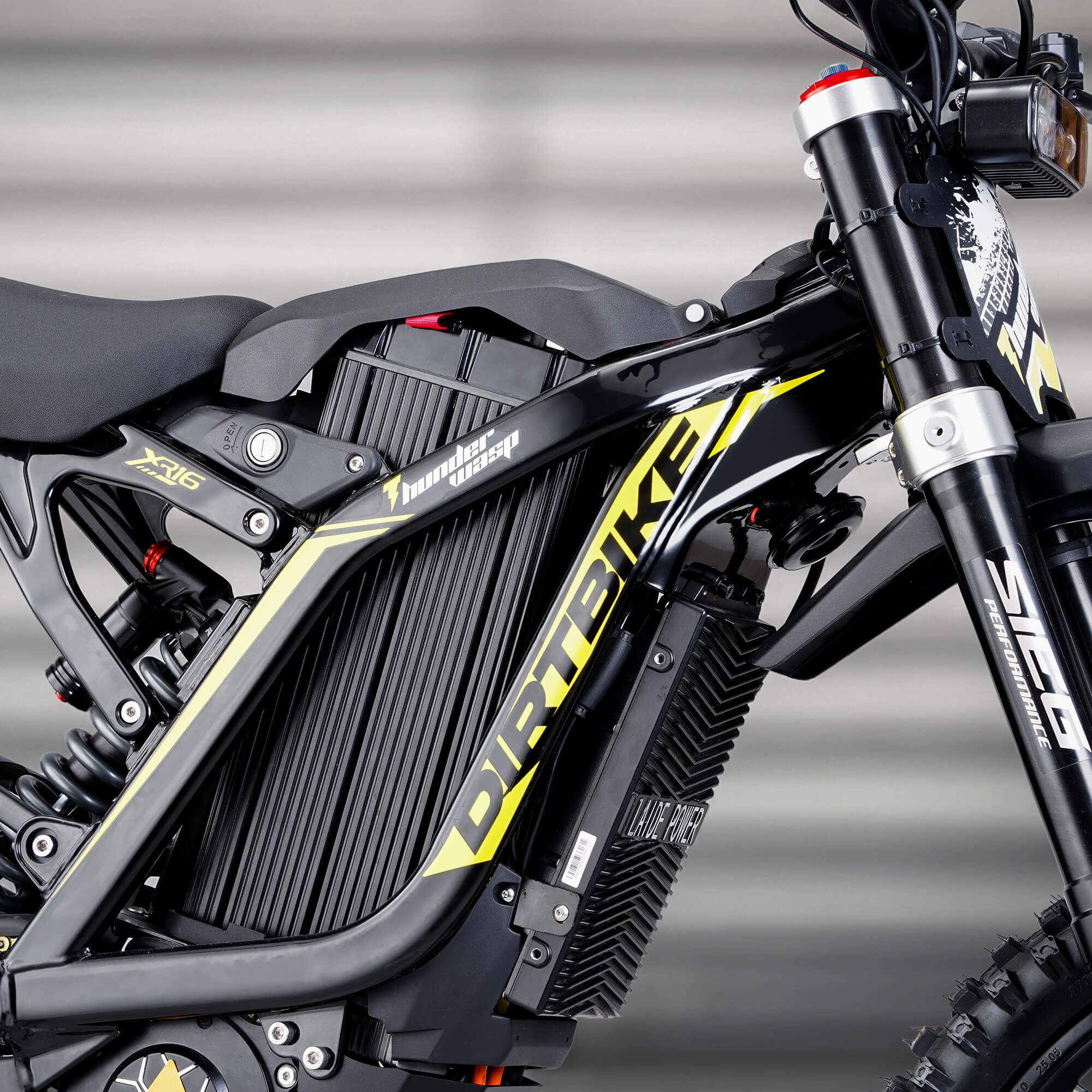

FRAME

With a 420 automotive‑grade alloy steel frame and swingarm, the XR 16 offers an ultra‑durable foundation with superior strength and impact resistance that delivers confidence for even the most aggressive off‑road riders.

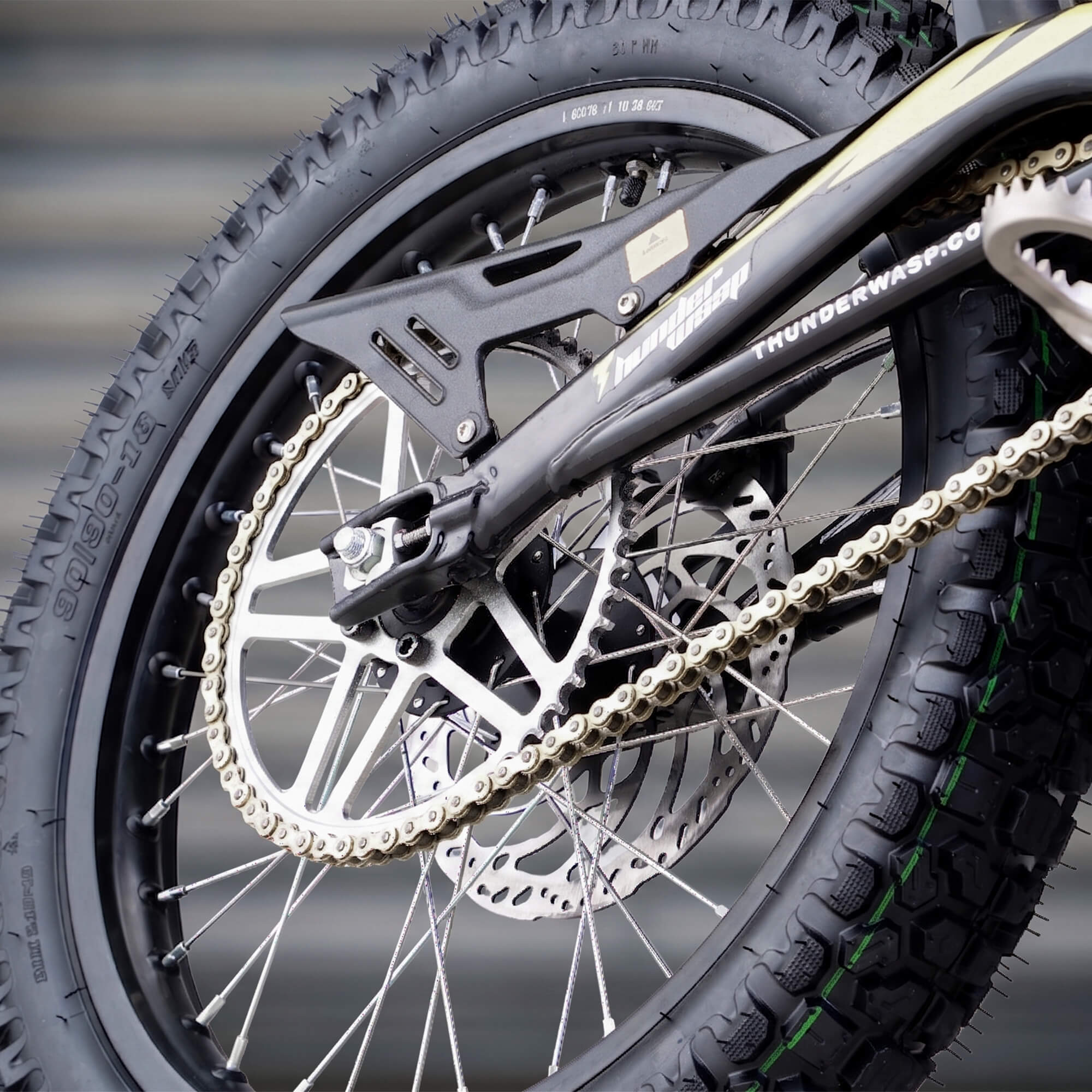

CHAIN DRIVE

Experience crisp acceleration and agile handling thanks to the XR 16’s rugged 420 chain — built to handle tough trails while keeping unsprung weight low, delivering reliable power transfer ride after ride.

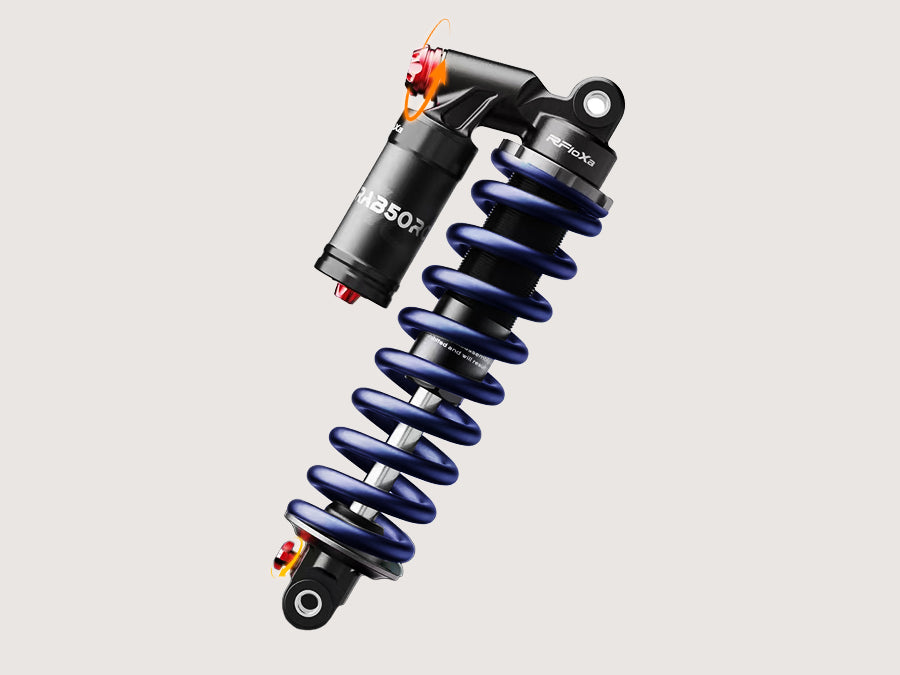

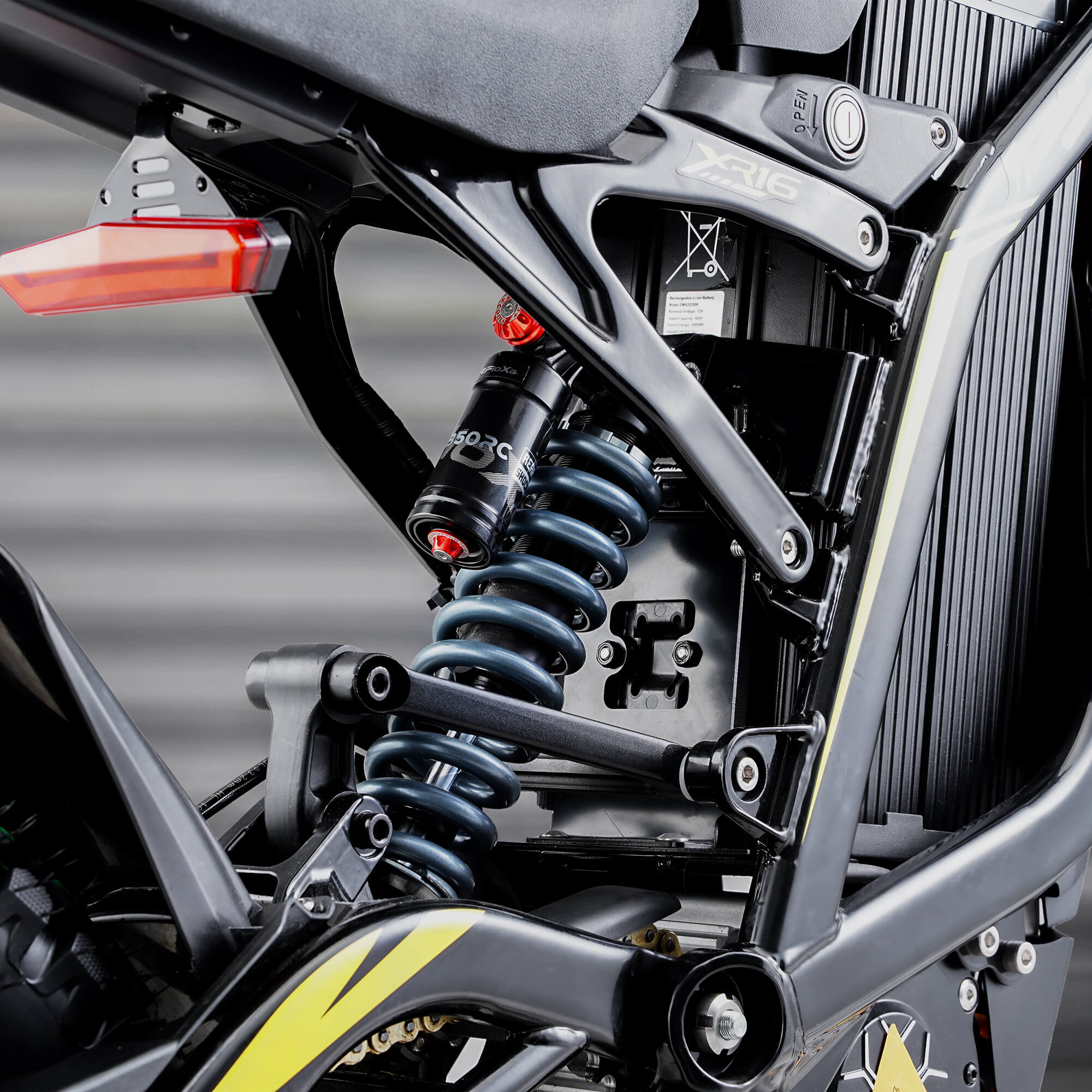

SUSPENSION

Factory-tuned for aggressive enduro riding and heavy-duty payloads, the XR 16's 550-lb spring suspension offers a stable, bottoming-resistant feel for every type of terrain.

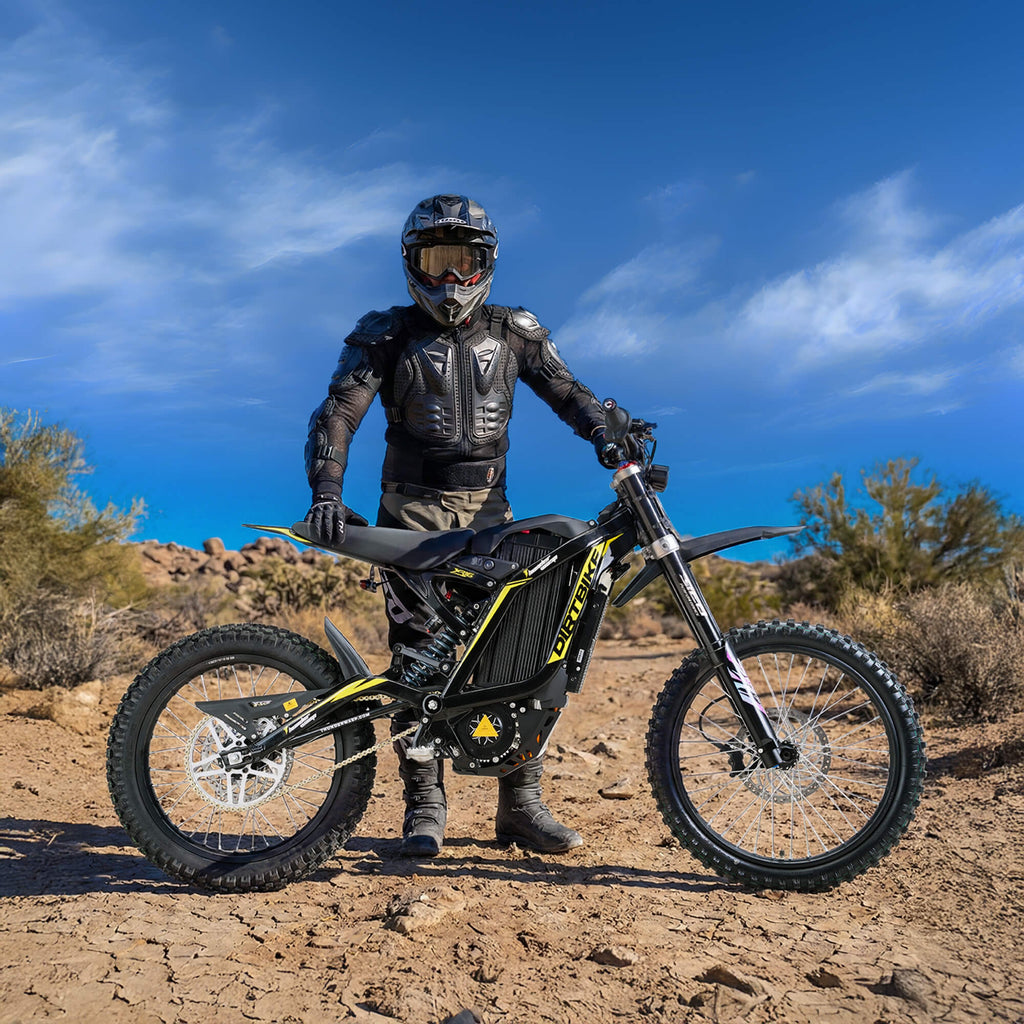

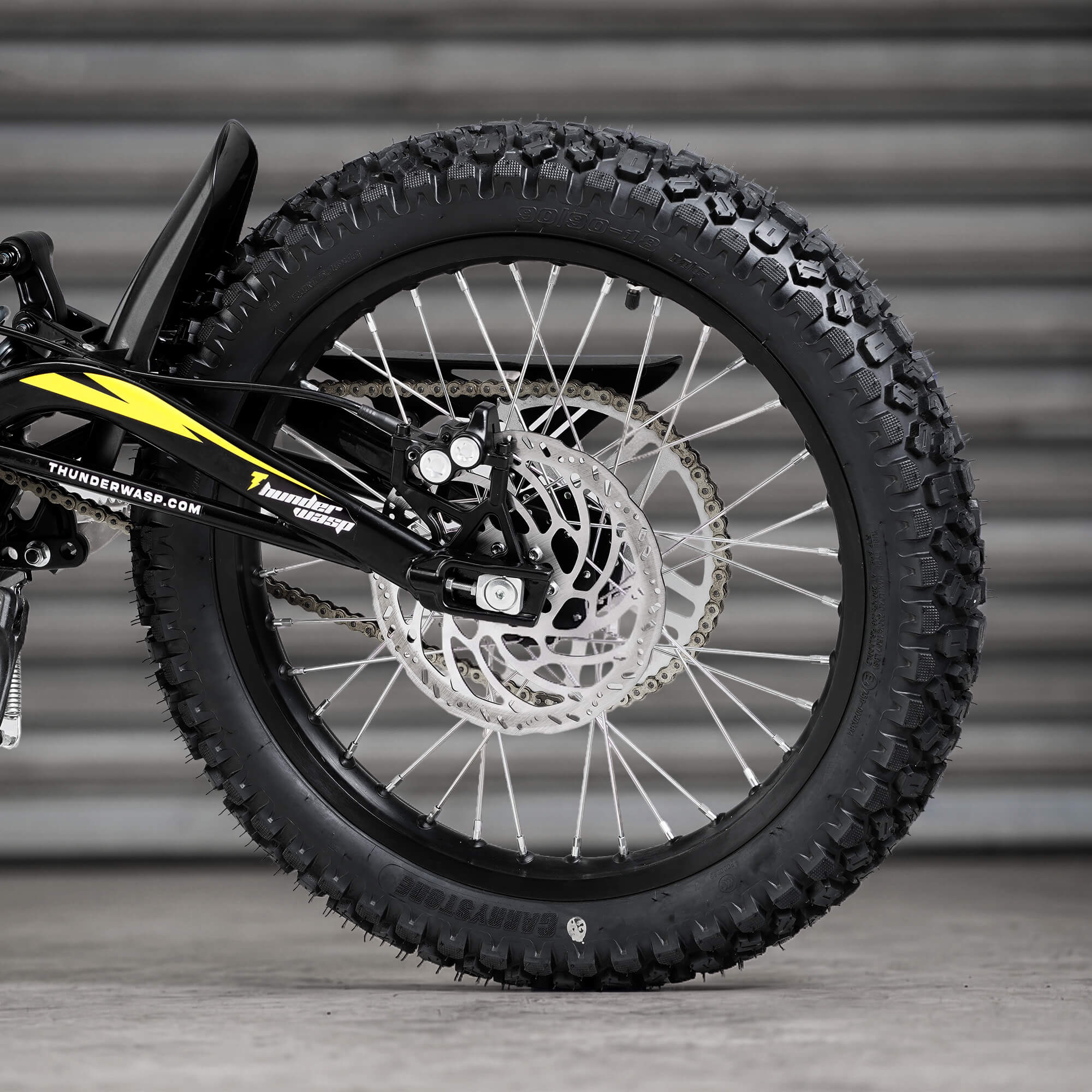

WHEELS & TIRES

The ThunderWasp XR 16 is equipped with knobby tires—19" in the front and 18" in the rear—designed to maximize grip and stability on loose terrain. Its aluminum spoked rims add flexibility and absorb shock, making them ideal for off-road conditions by enhancing durability and handling on rugged, uneven trails.

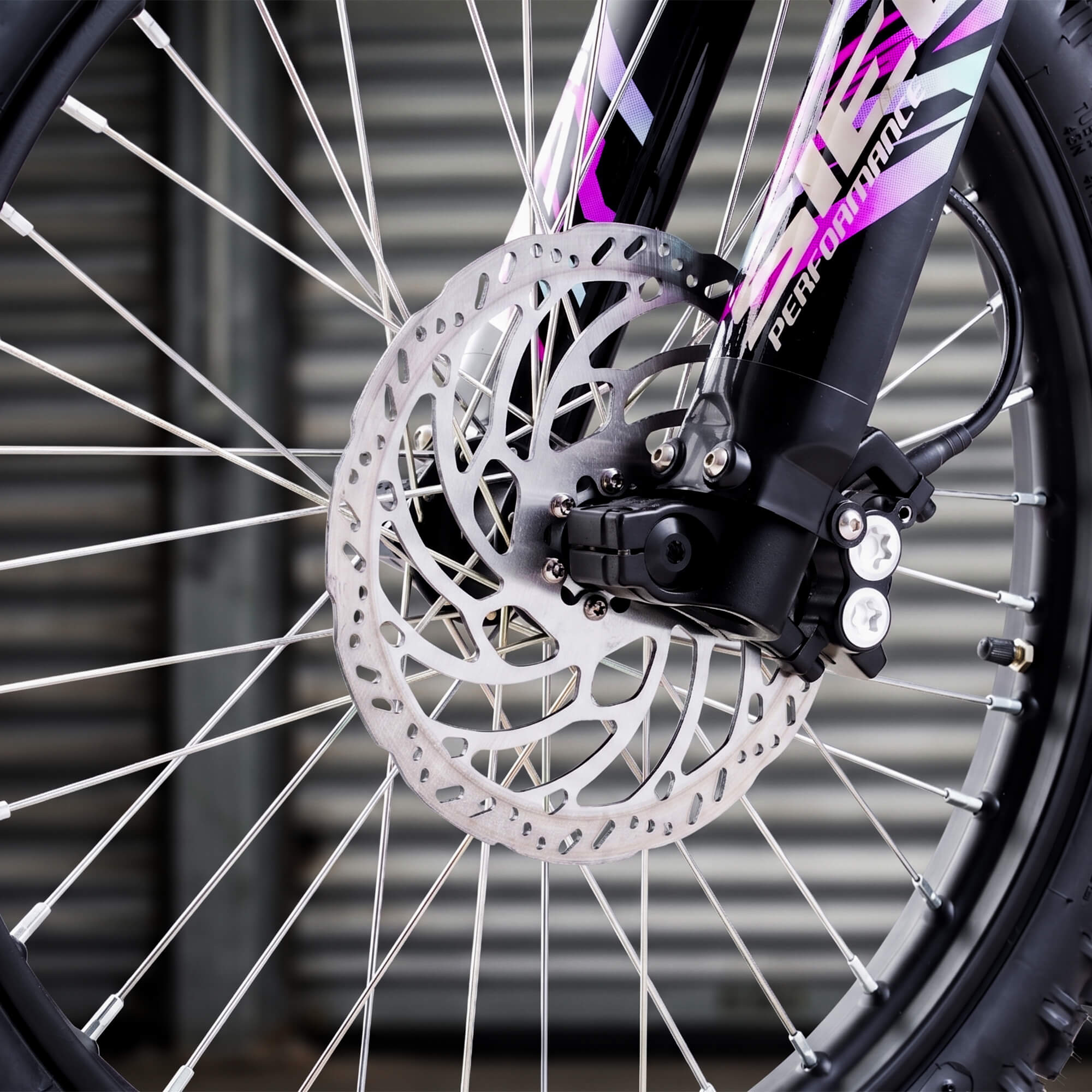

BRAKES

The ThunderWasp XR 16’s left-hand rear brake serves up maximum control right at your fingertips. The dual piston calipers on the front rotor (220mm) and rear (220mm) are DOT hydraulic motorcycle brakes, creating comforting control in virtually any riding scenario.

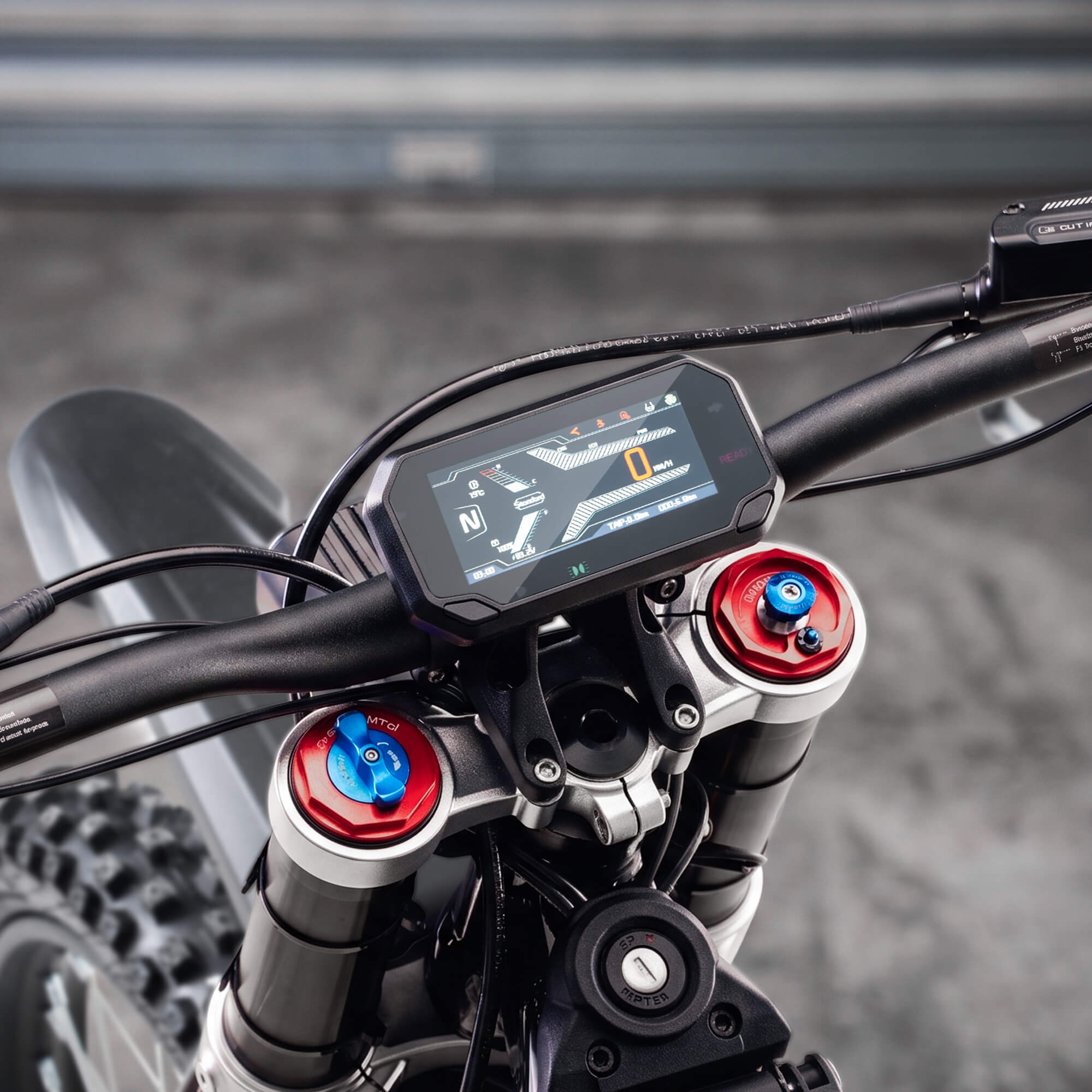

DASHBOARD

The ThunderWasp XR 16 features a sophisticated full-color TFT dash with 3 factory ride modes (ECO, Standard, and Sport). Take advantage of features like Hill Hold, regen rate adjustments, a tip-over sensor that cuts throttle if you go down, and cruise control—all selectable through the intuitive interface of the dash menu.

EXPLORE MORE ABOUT XR16

Technical Specifications

*To ensure uninterrupted suppluying and shipping, some parts may differ from those listed.
Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Performance

Top Speed
62.5 MPH

Max Torque
550 Nm / 339 Lb-ft

Climbing Ability
55 Degrees

0-30 MPH Accelerated
3.0 Seconds

Range
62 Miles (Eco Mode)

Weight Capacity
≤ 240 Lbs To Ensure The Performance and Safety

Mechanicals

Brake Type
4-Piston DOT 4.0 Hydraulic Disc Brakes

Power Delivery
Gearbox and Chain Driven

Front Brake Rotor
220mm (φ) x 2.0mm (t) Steel Rotors

Rear Brake Rotor
220mm (φ) x 2.0mm (t) Steel Rotors

Frame Material
420 Alloy Steel

Vehicle Weight With Battery
152.1 Lbs

Front Fork Travel
200 mm

Rear Suspension Travel
70mm

Motor Type
Mid-drive Permanent Magnet Motor, Brushless, IPX6

Electrics

Max Output Power
16000 Watts

Battery Capacity
2880 Watt·hour (72V 40Ah)

Cells Type
50S Lithium Ion SAMSUNG

Nominal Power Output
8500 Watts

Battery Charger
72V 10A Quick charger, 4-5H charge time

Display Type
LCD, Motors Switch, USB Charge Port

Head Light
2,500 Lumens (25W) LED with Built-in Horn

Tail Light
LED with Integrated Brake Signal Blinker

FAQ & Reviews

How far can a 72V 40Ah battery go? How far can a 72V 40Ah battery go?

Mixed trail riding (hills, dirt, some flat sections): 50–70 km (31–43 miles). Pavement cruising: up to 90 km (56 miles). Real range depends on terrain, rider weight, and throttle use.

How long does it take to fully charge the battery? How long does it take to fully charge the battery?

XR16 :4h
X10 :3.5-4h
TE :5-6h

Does the bike support multiple speed or riding modes? Does the bike support multiple speed or riding modes?

Yes. The Thunderwasp electric off-road bike gives riders Eco / Drive / Sport modes, letting you choose smooth control, balanced cruising, or full performance.
The XR16 riding speed of the rider weighing 75 kg during the experiment：
Mode E: 25 mph (40 km/h)
Mode D: 53 mph (85 km/h)
Mode S: 60 mph (95 km/h)

What rider height is suitable for the Thunderwasp electric dirt bike? What rider height is suitable for the Thunderwasp electric dirt bike?

Recommended Rider Height:

5'5" - 6'3" or 165cm - 190cm

What accessories are available for Thunderwasp electric dirt bikes? What accessories are available for Thunderwasp electric dirt bikes?

Thunderwasp offers a dedicated accessories collection to customize and upgrade your ride. All models are compatible with Surron's modification parts.

IMPORTANT NOTE: NOTICE: THIS BIKE IS SOLD FOR OFF-ROAD OR TRACK USE ONLY. IT IS SPEED AND POWER LIMITED TO COMPLY WITH FEDERAL, STATE AND LOCAL LAWS. PLEASE DO NOT BYPASS THIS RESTRICTION OR MODIFY IT TO GO FASTER.. THE BUYER TAKES FULL RESPONSIBILITY OF THE PROPER USE OF THIS PRODUCT WHICH MAY OR MAY NOT CONFORM TO ALL APPLICABLE LAWS IN THE REGION IT IS RIDDEN.
